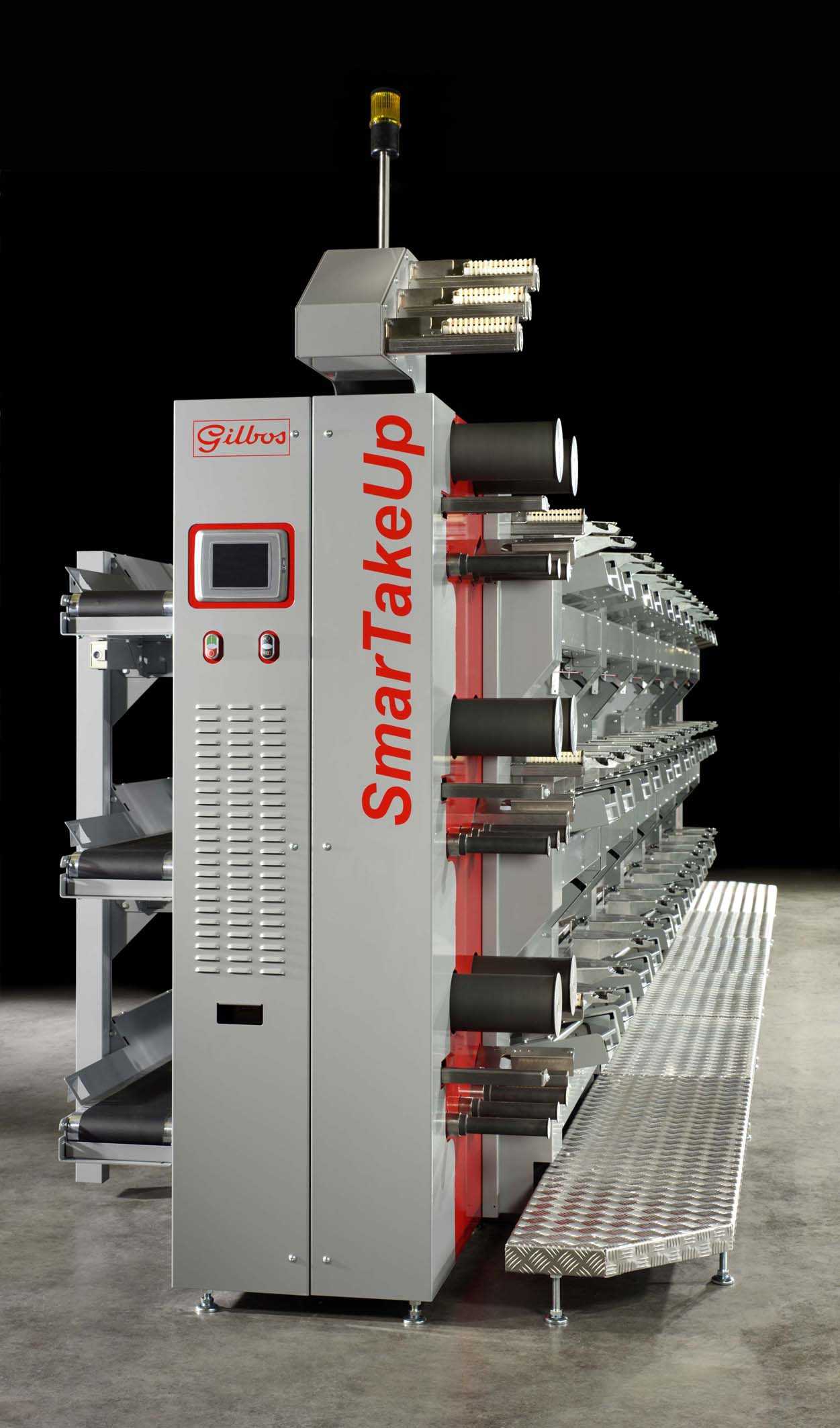

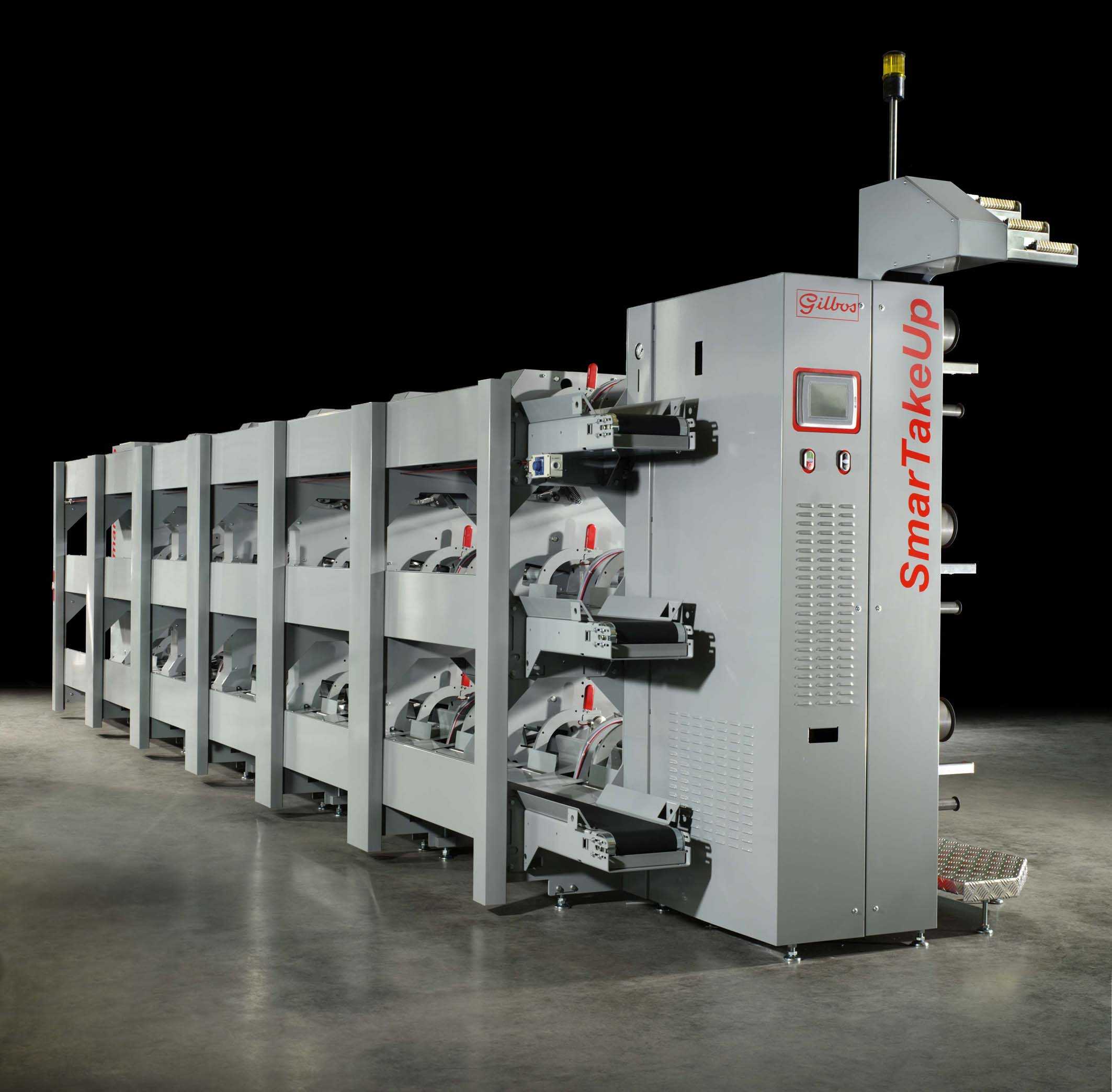

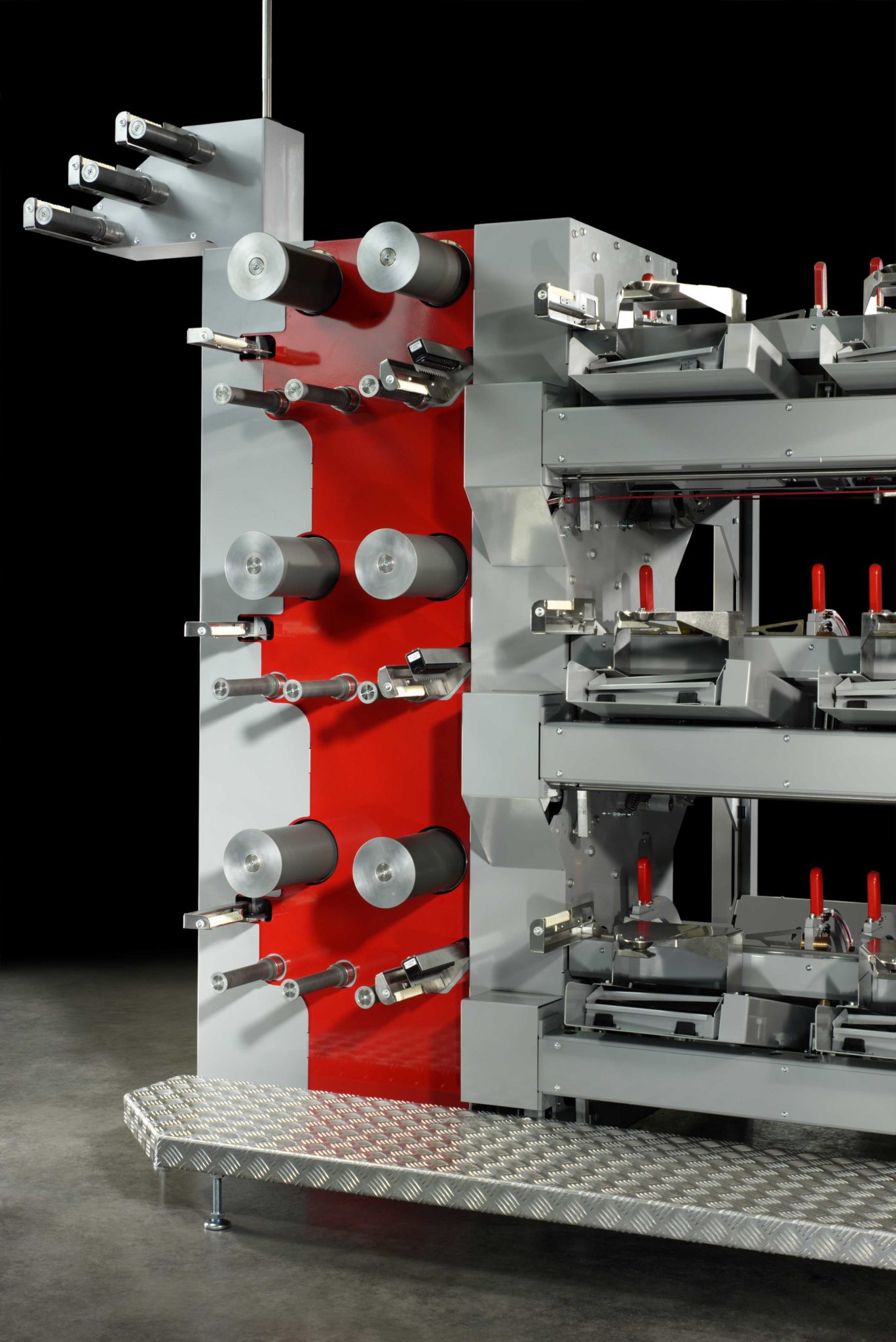

SmarTakeUp CD

SmarTakeUp CD

Winder for take-up of up to 84 ends for Superba, Power-Heat-Set HiPerSet or Chemset.

Advantages

  • Individually driven spindles per machine with a very efficient doffing systeem.
  • Winding speed is adjusted according to the heatset installation.
  • Electronically adjustable crossing angle and yarn feeding.
  • Conveyor belt per deck for evacuation of full packages.
  • Standard equipped with P-winding. (optional with P & Q-winding)
  • Very short doffing cycle of 15 seconds.
  • Machine can be extended up to 84 spindles.
Brochure SmarTakeUp CD

Omschrijving

Winder for take-up of up to 84 ends for Superba, Power-Heat-Set HiPerSet or Chemset.

  • Speed up to 750 m/min.
  • Quick & efficient doffing system.
  • Low maintenance cost.
  • Robust design with few moving parts and integrated maintenance interface allow for optimal uptime of the machine at a minimum cost.
  • Modular machine build up, in sections of 6 spindles, up to 84 ends.

Technische specificaties

Material                                PP, PA & PES BCF yarns – Spun yarns

Yarn Count                          600 to 4.000 dTex

Number of spindles         18 tot 96 per heatset lijn

Speed                                     up to 750 m /min.
